Description

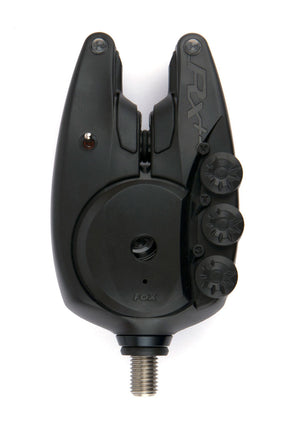

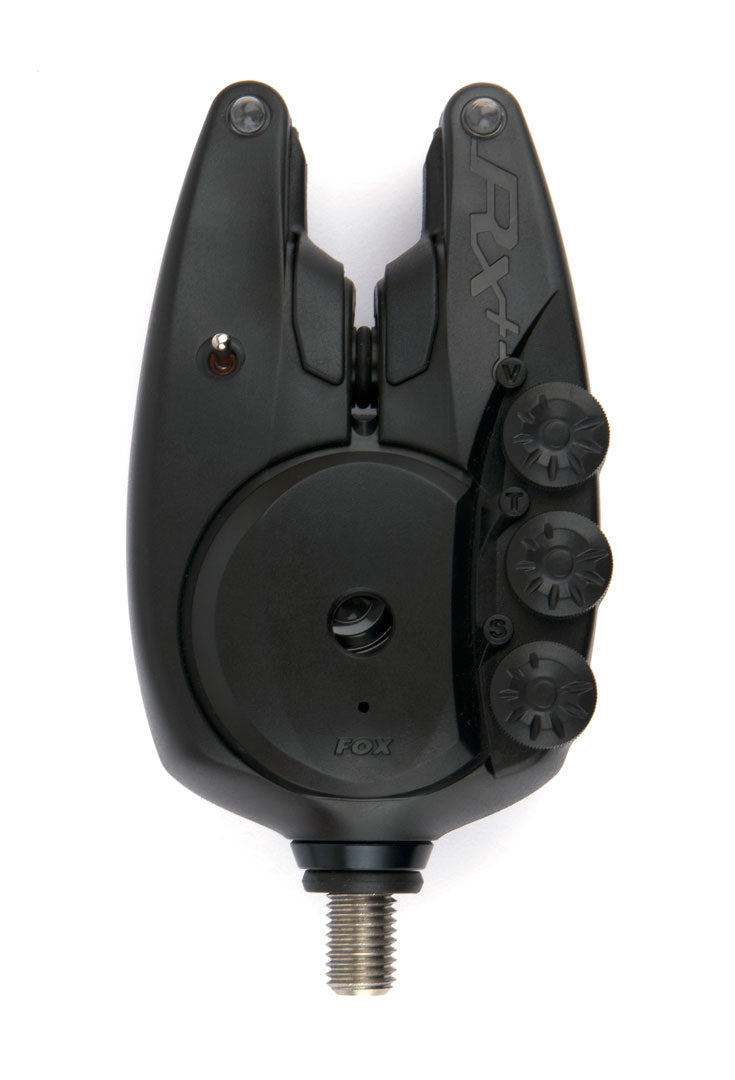

Fox Micron RX+ Presentation Sets
- Weatherproof sealed case
- Digital circuitry
- D-Tec Plus Sensing System (DTSS)
- Drop back differential
- Low battery drain
- CNC machined Tru-Run roller wheel
- Twin multi-colour LEDs (Red, Green, Blue, Orange, Purple & White)
- On / Off toggle switch with 2 operational modes (day and night mode)
- When in night mode both LEDs will subtly glow in your chosen colour
- High quality cone speaker
- Rigid 3/8” stainless steel thread
- Rod-friendly rubber inlays
- Indexed ergonomic control for volume (8 different levels of volume with lowest setting being completely silent)
- Indexed ergonomic control for tone (8 different tone settings: turn dial clockwise to raise pitch and anti-clockwise to lower pitch)
- Indexed ergonomic control for Intelligent Sensitivity featuring See-Saw elimination (8 different sensitivity settings – see below Sensitivity table for comparison to NTX-R)
- Range test function allows user to check RX+ Receiver is picking up RX+ head at any given range
- Low battery warning (LED colour changes to cyan indicating it is time to replace batteries)

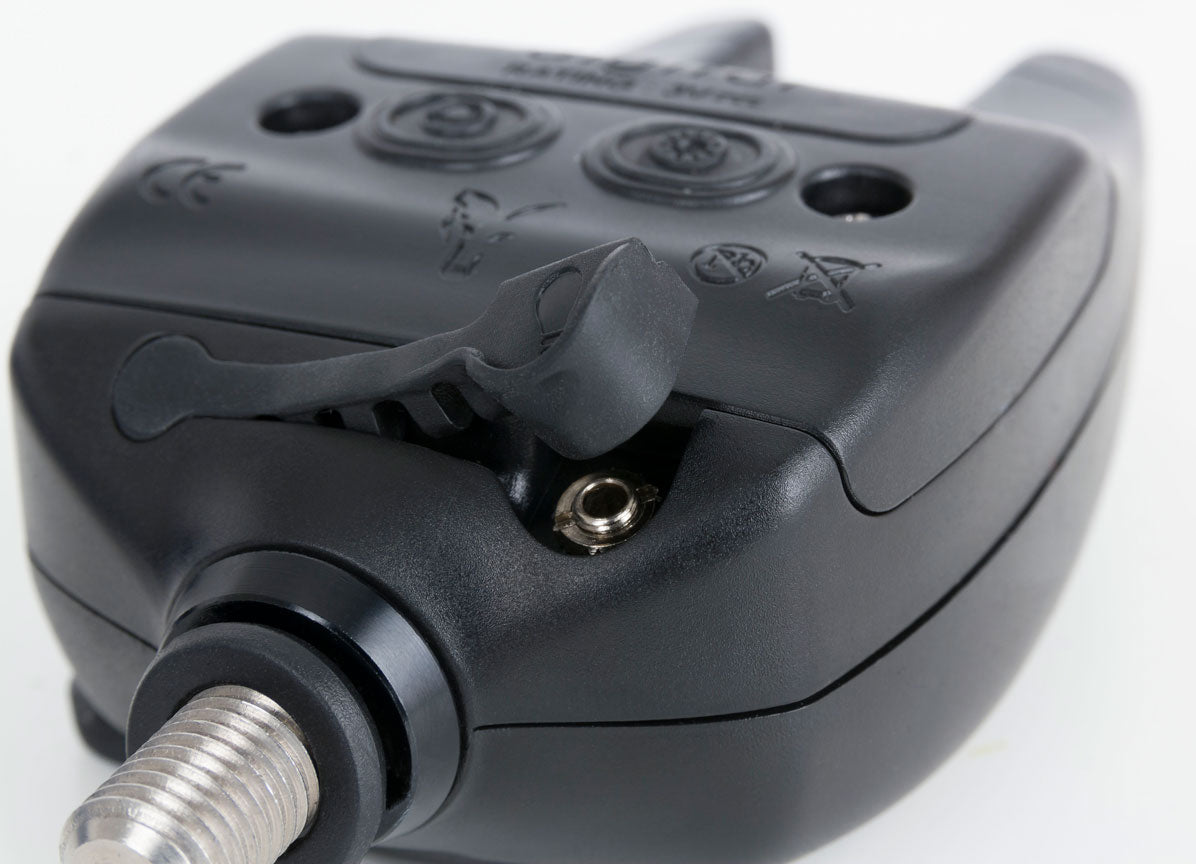

- Power Out Socket (2.5mm) for use with illuminated Swingers
- Supplied with two compression washer options: rigid and soft with an additional spare soft washer per unit
- Requires 2 x AA batteries

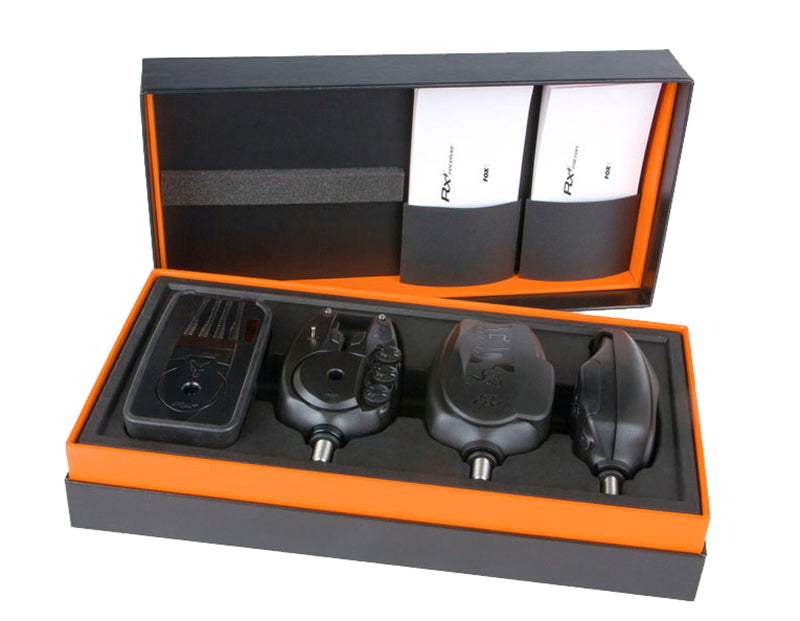

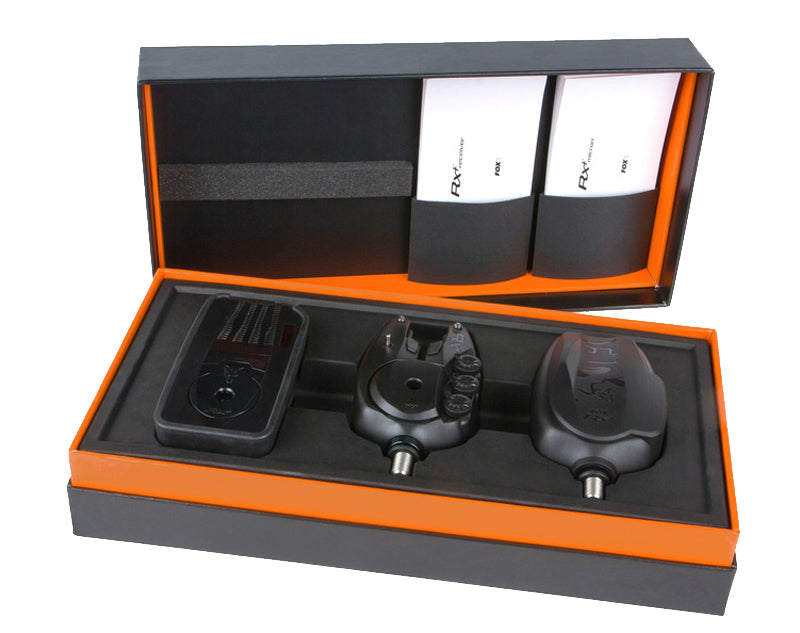

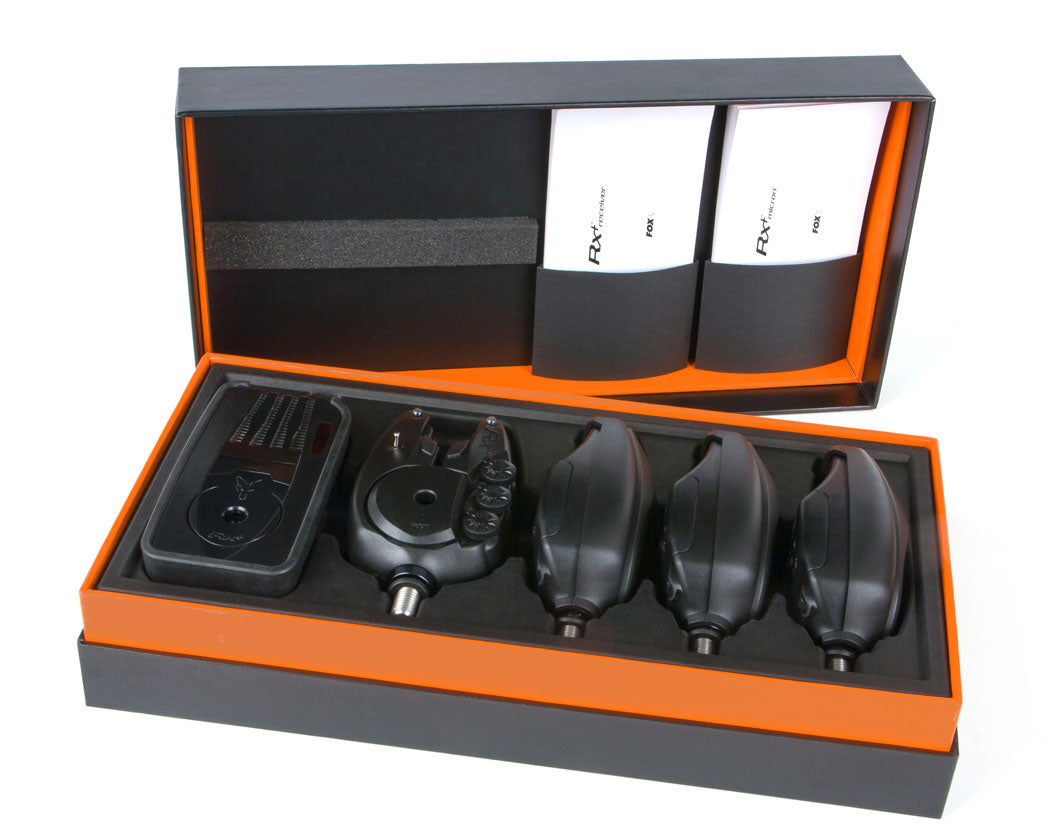

- RX+ Receiver, 2-rod, 3-rod and 4-rod presentation sets available separately
Improved features compared to NTX-R
- Deeper ears with no increase in the height of the alarm

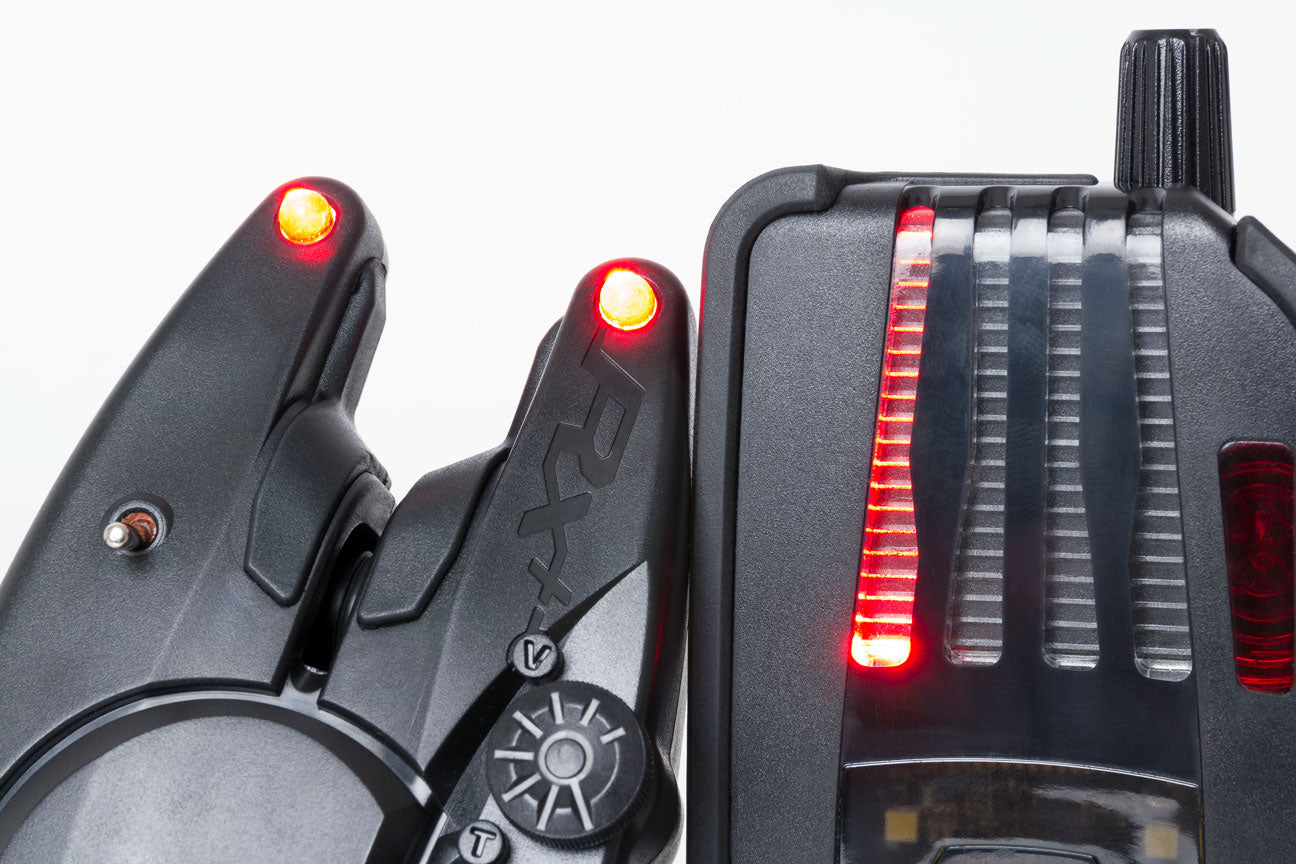

- Twin multi-colour LEDs, one per ear and at the very top of the ear
- External control of the multi-colour LEDs with Colour Sync™ function – simply change LED colour via button on the battery cover
- Manually selectable day and night modes
- External control of the Vari-Bright adjustable LED brightness to suit the conditions you are fishing in (choice of 3 LED brightness settings in day mode and 3 different brightness settings in night mode) simply adjust via button on battery cover
- Larger clearance around the roller wheel and improved drainage vastly reduces chances of roller wheel freezing up in extreme cold conditions
- Stronger range performance with RX+ Receiver
- Improved sensitivity range (see below)
Sensitivity Control
In all sensitivity settings (except maximum), the line must travel the specified distance in the same direction and within 2 seconds in order to trigger the unit. Any movement in the opposite direction will reset the distance counter to zero. This can substantially reduce, or eliminate false triggering caused by wind and water movement.
Line Movement RX+ Line Movement NTX-R
Setting 1 (Min) 90mm 74mm
Setting 2 73mm 56mm
Setting 3 56mm 48mm
Setting 4 34mm 40mm
Setting 5 17mm 32mm
Setting 6 11mm 24mm
Setting 7 5.6mm 16mm
Setting 8 (Max) 2.8mm 8mm
